car driver
share to:
Technical Parameters:
Communication method: CAN or pulse
Protection class: IP67
Insulation performance: DC 1000V insulation resistance=20M0
Vibration standard: 0C/T413-2002
Cooling method: natural air cooling
Working environment temperature: -30C~ 55C
Storage temperature: -40C~ 85C

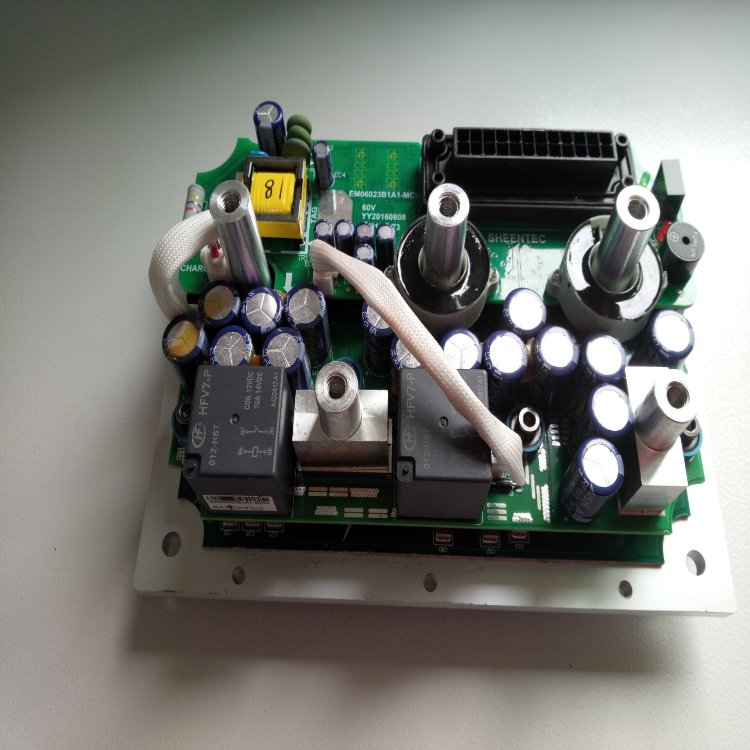

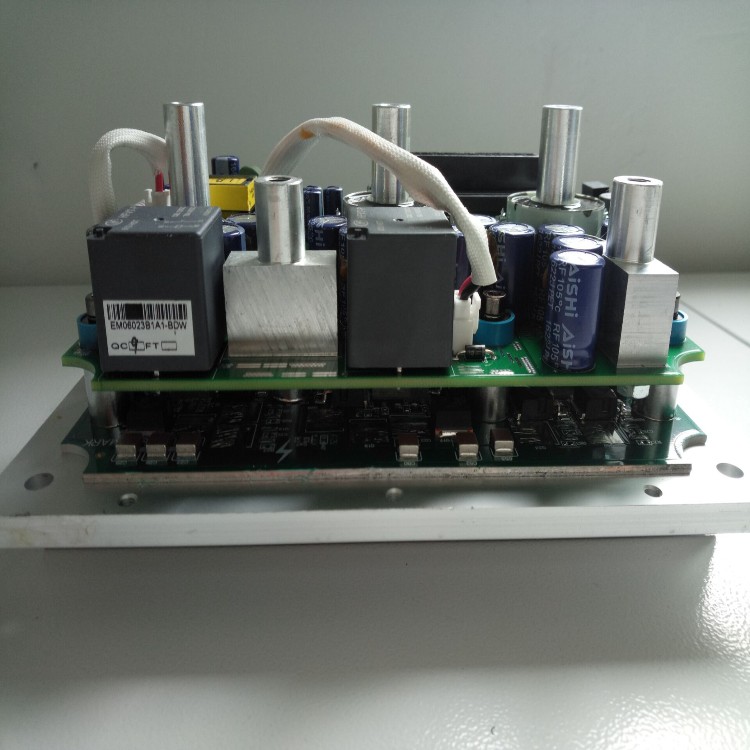

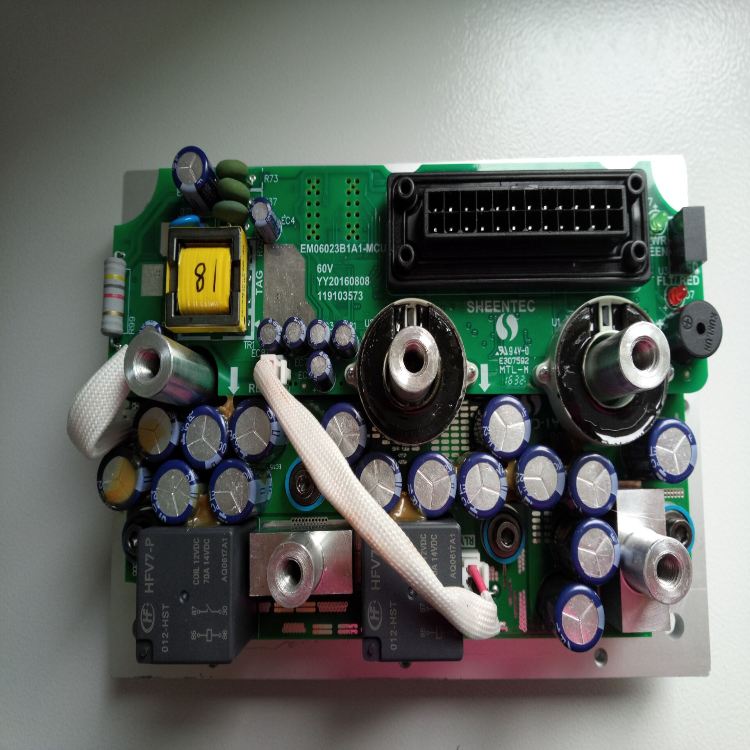

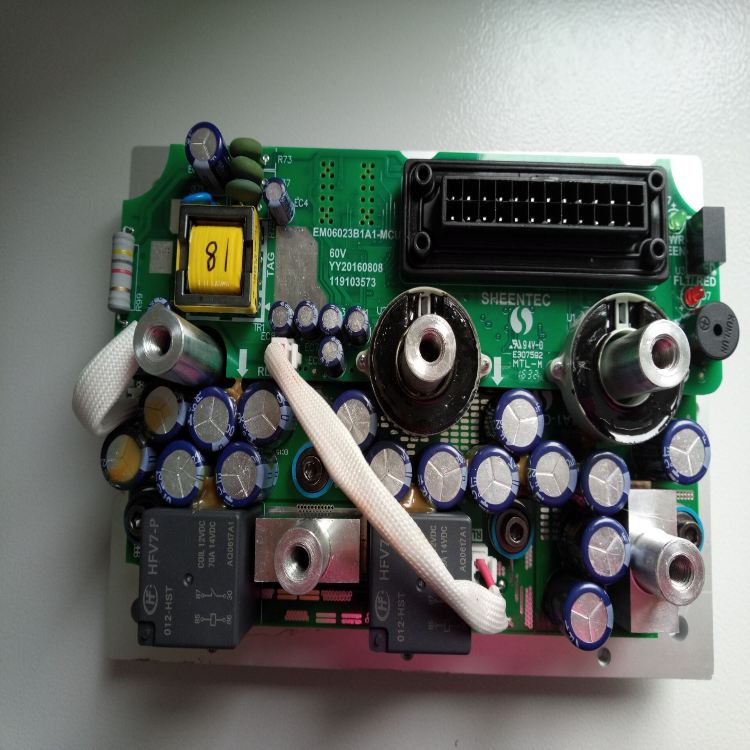

Product Details
| 1EM3-6028-XX | |||||||||
Input voltage range
|
52Vto75V | ||||||||
Maximum output current
|
275Arms | ||||||||
Rated output current
|
120Arms | ||||||||
Starting voltage
|
40V | ||||||||
Maximum output power
|
12KW | ||||||||

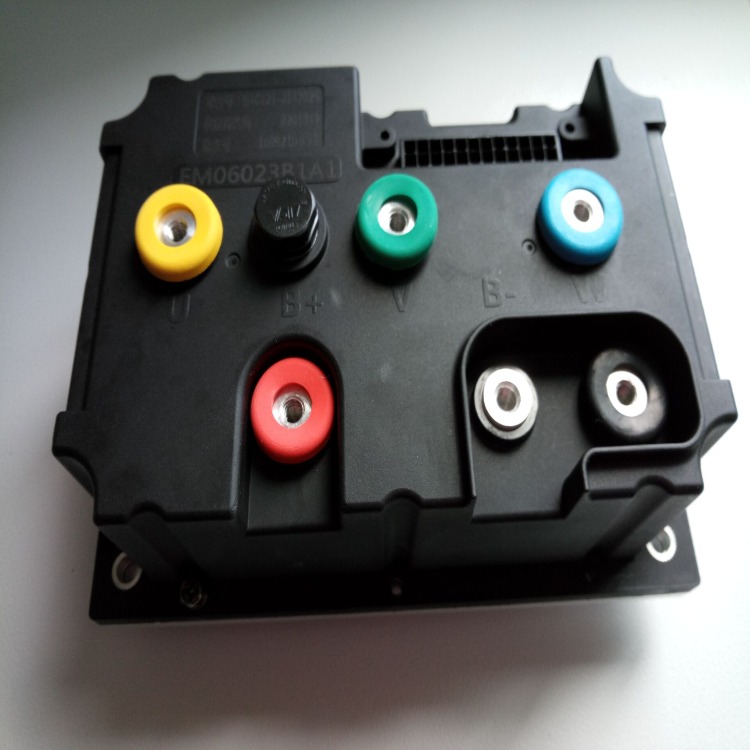

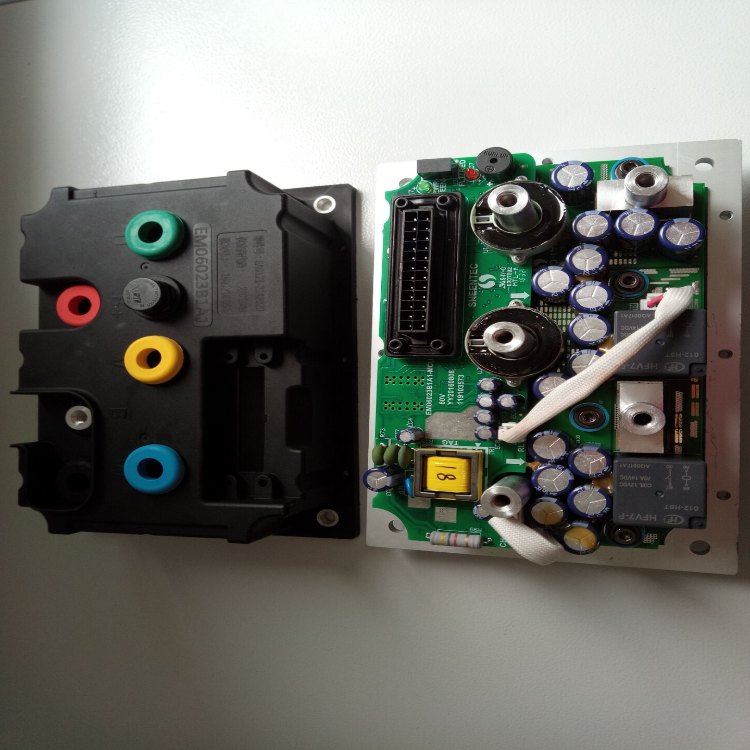

Assembly Instructions: 1）The three phases U, V, and W of the controller are power terminals, which are respectively connected to the three-phases of the controlled motor. The terminal wiring is equipped with M6 standard thread, which is suitable for M6X20 screws: 2）The controller B+ and B- are the power terminals of the bus bar, B+ is connected to the positive pole of the battery pack, and B- is connected to the shunt. The terminal wiring is equipped with M6 standard thread, which is suitable for M6X20 screws: 3） It is the connection of the shunt of the controller, equipped with m6 standard thread, suitable for 6X20 screws, and connected with the negative pole of the battery and other negative pole leads 4)Fixing holes at the four corners of the controller, connected with the vehicle mounting frame, the hole diameter is 8.2mm, no thread
Protective function
1）Under-voltage, over-positive protection, low-voltage power limit function:
2）Overcurrent (current value can be set) and short circuit protection
3）Controller overheat protection and high temperature power limit function:
4）Motor temperature overheat protection and high temperature power limit function
5）Anti-reverse connection (with relay) function:
Controller Protection Parameters：
Power down
|
shutdown
|
|
bus voltage(V)
|
52≤U<55 | U≤52,U≥75 |
case temperature(C)
|
80≤T<100 | T≥100 |
motor temperature(C)
|
135≤T<150 | T≥150 |
